M45 H ACDINDUSTRIAL VACUUM FOR COMBUSTIBLE DUST

ACD classified industrial vacuum for suction of combustible dust in non-ATEX classified areas. Two powerful single-phase motors that can be driven independently, two progressive efficiency filters M and H14, complete earthing and 45 litre stainless steel container for maximum safety in use. Anti-static accessories and remote control via electric tool available as options. Available version with container for dust inertisation.

  • ACD classified for extraction of combustible dusts in non-ATEX areas
  • Compact and easy to maintain
  • 2 levels of progressive filtration
  • Vacuum gauge for performance monitoring
Få et tilbud

Power

2,6 kW

surface

15.000 cm2

Capacity

45 Lt

Highlights

Two single phase motors

Suction is provided by 2 by-pass motors. Each motor is operated by an independent switch that allows the operator to control suction performance. The motors are housed in a robust casing, with an insulating sponge to maintain a low noise level.

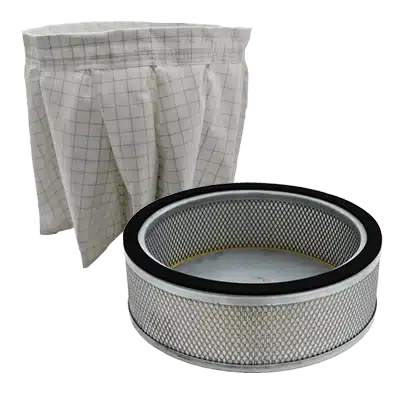

Grounded antistatic filters

The primary filter is made of robust antistatic polyester. Inside the fabric, which is class M (BIA | EN 60335-2-69), there is a conductive mesh that prevents any electrostatic charge. An absolute H14 secondary filter and the connection of all components ensure complete dissipation of electrostatic charge.

Stainless steel container

The material is collected inside an AISI 304 stainless steel container, equipped with a metal handle that ensures its release, to avoid any sparks that might be generated by the electrostatic charge.

ACD, for combustible dusts

ACD ‘Appliances for combustible dust’ vacuum cleaners are specifically designed to ensure the safe collection of combustible dust in areas not classified as explosive atmospheres and where ATEX certification is not required.

Technical data

Motor

Type

2 single phase by-pass motors

Voltage

230

V

IP

54

Continuous vacuum

250

mBar

Maximum air flow

380

m3/h

Noise level

72

dB(A)

Frequency

50/60

Hz

Power

3,5

HP

Primary filter

Type

Starfilter - 15.000 cm2

Class EN 60335-2-69

M+H14

Media

Antistatic polyester

Filter cleaning

Manual

Machine

Dimensions

550 x 620

mm

Height

1400

mm

Weight

45

Kg

Solid capabilities

45
