XM35 FLOOR PREPARATION LPINDUSTRIAL VACUUM

The XM35 Floor Preparation is a dust extractor from the Depureco line that has been designed for the extraction of floor sanding dust. The vacuum cleaner can be connected to the sanding machine to vacuum directly the dust generated, ensuring air quality and the health of the operator. Inside the suction chamber, there is a conical cartridge filter with a large filtering surface (35,000 cm2), surrounded by a metal cylinder, excellent for stopping concrete dust while protecting the filter. This unit features special oversized rubber wheels to provide unmatched ease of movement. The ease of movement is also accentuated by the practical telescopic system that allows the machine to be compacted, reducing its size, to facilitate transport. The vacuum cleaner can be equipped with a 45 Lt painted steel container or with a practical Longopac system with an endless bag.

Power

2.6 kW

surface

35.000 cm2

Capacity

Longopac Lt

Highlights

SUCTION UNIT

The vacuum is generated by 2 by-pass motors. Each motor is managed by an independent switch, permitting the operator to control the intake performance. The motors are located in a sturdy casing, with an insulating sponge to maintain a low noise level.

FILTERING ELEMENT

The filtration is guaranteed by a sturdy polyester filtering cartridge. The cartridge is made to ensure large filter surface (35.000 cm2) in a compact space. This way air can pass through when the filter is dirty too. The filter is M Class (BIA | EN 60335-2-69) certified. It stops the particles till 1 micron, preserving the motors and the operator.

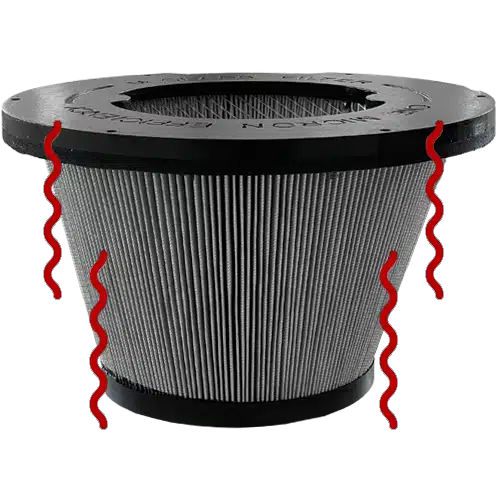

VIBRO Cleaning System

A filter cartridge cleaning system by vibration that maintains maximum suction efficiency even after prolonged use of compact machines, without the need for operator intervention.

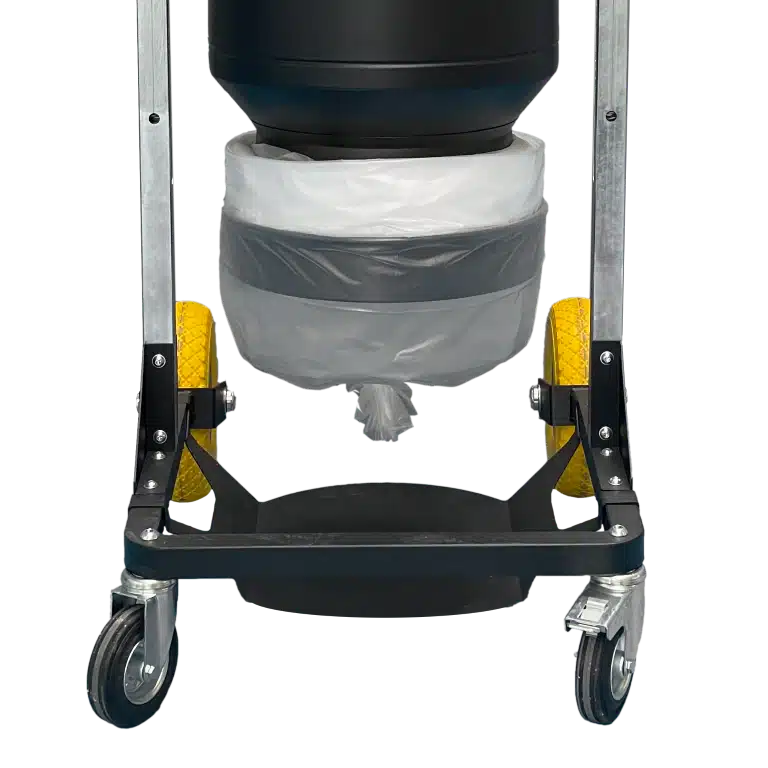

LONGOPAC®

The vacuumed material is collected inside a durable plastic bag named Longopac® which is 20 mt. long. The bag is rolled up under the filter chamber and is adjustable for every need. The operator, once the bag is full, will seal the bag by closing it above the collected material, which falls automatically inside the bag during the vacuuming operations. The full part of the bag can subsequently be cut off and disposed of, in total safety, without any contact occurring between the operator and the material.

Technical data

Motor

Type

BY-PASS

Voltage

230

V

Maximum vacuum

250

mBar

Maximum air flow

380

m3/h

Noise level

72

dB(A)

Engines

2

Frequency

50/60

Hz

Power

3.5

HP

Primary filter

Type

cartridge

Class EN 60335-2-69

M Class

Media

antistatic polyester

Filter cleaning

Vibration

Filtering efficiency (IFA)

IFA/BGIA M-PES AL

Machine

Suction inlet

50

Ø mm

Dimensions

585 x 545

mm

Height

1395

mm

Weight

45

Kg
