RAM OIL 250 T SINDUSTRIAL VACUUM

The RAM OIL 250 T S industrial vacuum, with its 250-liter liquid tank and separator basket of more than 70 liters, is the perfect machine to vacuum, separate, and reuse or dispose of the oil mixed with swarf from the tanks. The RAM OIL 250 T S industrial vacuum from the Depureco oil and swarf range is equipped as standard with a 60 lt/min pump for emptying the filtered liquids; this operation allows the operator to vacuum liquids and sludge and at the same time discharge filtered emulsified liquids. Professional suction is generated by a side-channel blower that ensures an excellent vacuum speed. The hopper for collecting the shavings is equipped with a metal basket that is used to separate the solid part from the liquid part and a 150-micron filter for a more effective filtration on the swarf. The hopper tilting and discharge system are used to discharge the filtered residue directly from the machine, without the need and risk of manually lifting the container. In these vacuum cleaners, two electrical level indicators are installed in order to stop the vacuum flow upon reaching maximum capacity.

Power

5,5 kW

surface

Capacity

250 Lt

Highlights

SUCTION UNIT

The suction unit is a side channel blower with direct coupling between motor and impeller. The side channel blower is equipped with a safety valve to guarantee continued work in complete safety, without any maintenance. The blower is also equipped with a metal silencer to maintain a low noise level.

HOPPER

Above the vacuum’s large tank is installed a tiltable hopper. A metal mash basket, paired with a PPL filter, is placed inside the hopper. The two act as a sieve, separating any solid particle eventually present from the vacuumed liquid.

FILTERING ELEMENT

The collected liquid goes through a PPL filter with a 150µ efficiency. Thanks to it it’s possible to separate even the smallest solid particles, making the filtered liquid suitable for reuse. The filter can be washed and reused easily. A disposable TNT filter (efficiency 100µ) is also available.

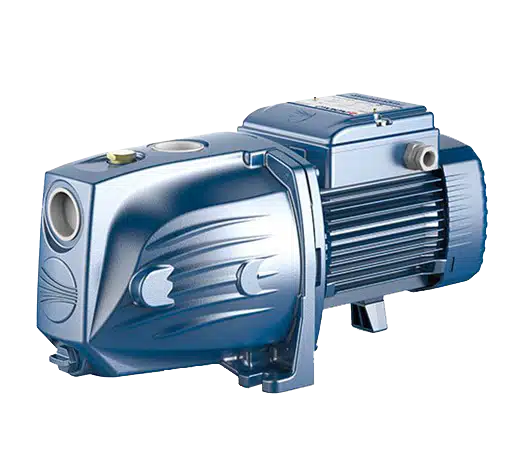

PUMP

The vacuum cleaner is equipped with a pump in order to empty the tank. The pump’s level sensor automatically interrupts intake upon reaching maximum capacity. In the same way, the level sensor instructs the machine to interrupt discharge operations once minimum level is reached.

Technical data

Motor

Type

side channel blower

Voltage

400

V

IP

55

Continuous vacuum

440

mBar

Maximum air flow

330

m3/h

Safety valve

included

Noise level

76

dB(A)

Frequency

50/60

Hz

Power

7,5

HP

Insulation class

F

Suction time

200Lt/50sec

Primary filter

Machine

Suction inlet

50

Ø mm

Dimensions

850 X 1550

mm

Height

1780

mm

Weight

240

Kg

Solid capabilities

70
