M70 OILINDUSTRIAL VACUUM CLEANER

The M70 OIL industrial vacuum cleaner is designed to suck up and separate oil and metal chips from tanks, on machine tool tables and guides. Suction is generated by two motors working in parallel, ensuring excellent suction speed. The container of this vacuum cleaner is equipped with a metal basket to separate the solid part from the liquid part and a 150-micron nylon filter for more effective filtration. The electric floating level switch automatically stops suction when the maximum capacity of the container is reached (70 lt of emulsified oil sucked in). Discharge is by gravity, thanks to a discharge tube located at the bottom of the container. Optionally, a discharge pump can be installed simultaneously with the suction of the filtered liquid. The M70 OIL industrial vacuum cleaner is mounted on wheels, the container allows the operator to easily empty the sucked material, so the liquid can also be discharged inside a collection or settling container.

Power

2,6 kW

surface

Capacity

70 Lt

Highlights

VACUUM UNIT

Suction is provided by 2 by-pass motors. Each motor is operated by an independent switch that allows the operator to control suction performance. The suction motors are located in a sturdy metal casing, with an insulating sponge to maintain a low noise level.

FILTER UNIT

The collected liquid passes through a PPL filter with an efficiency of 150µ. Thanks to this, even the smallest solid particles can be separated, making the filtered liquid suitable for reuse. The filter can be washed and reused easily. A disposable TNT filter (100µ efficiency) is also available.

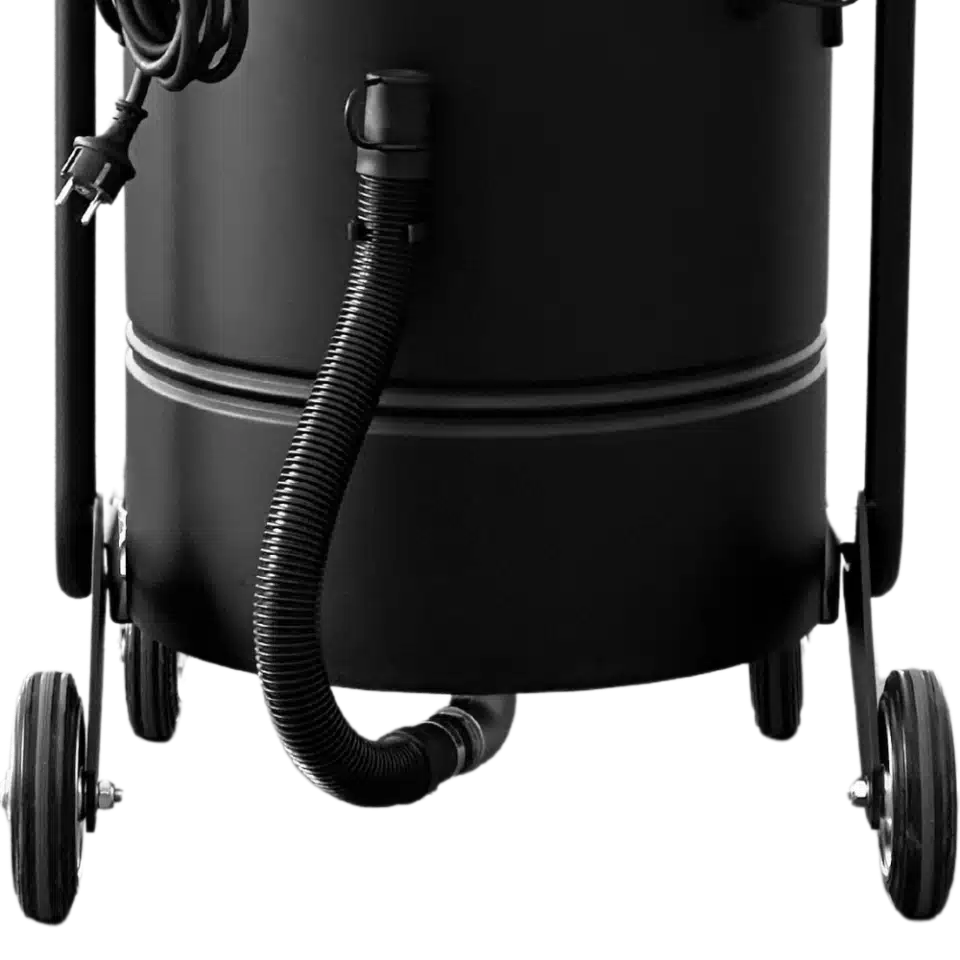

DISCHARGE SYSTEM

To drain the collected liquid, the container is equipped with a drain tube at the bottom. The liquids are drained by gravity.

Technical data

Motor

Type

by-pass

Voltage

230

V

Maximum vacuum

250

mBar

Maximum air flow

380

m3/h

Noise level

72

dB(A)

Engines

2

Frequency

50/60

Hz

Power

3,5

HP

Suction time

70/18

Primary filter

Machine

Dimensions

700 x 450

mm

Height

1440

mm

Weight

90

Kg

Solid capabilities

40

Oil filter

Type of discharge

By gravity
