DF FIX 55INDUSTRIAL VACUUM

The DF FIX 55 is a portable industrial vacuum with a three-phase fan for vacuuming suspended dust or it can be connected to aluminum and PVC cutting machine. The DF FIX 55 industrial vacuum from the Depureco dust collectors’ range is fitted with an excellent filtering surface with an M Class filtration efficiency (1 micron). For this vacuum cleaner, a very effective manual filter cleaning system is fitted as standard. Thanks to a lever outside the filter chamber, the operator can shake the filter and make the dust drop directly into the bin. An automatic piston filter shaking system or jet pulse filter cleaning system can be installed on demand.

Power

5,5 kW

surface

45,000 cm2

Capacity

175 Lt

Highlights

SUCTION UNIT

The vacuum is generated by an electric fan designed specifically to guarantee the best air flow while maintaining a good level of depression.

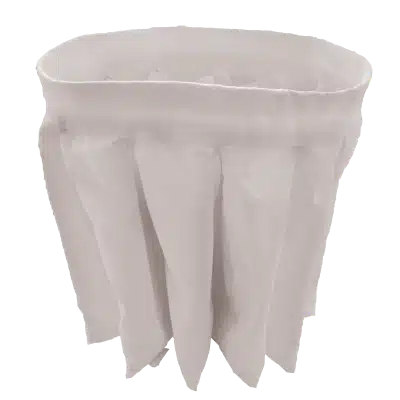

FILTERING UNIT

The filtration is guaranteed by an M class polyester filter. The star shape enables air to flow through the filter even when it is dirty. The fabric of the filter is classified as M Class (BIA | EN 60335-2-69). This means that all particles till 1 micron are stopped by the filter so as to protect the fan and the operator around the vacuum cleaner.

COLLECTION BIN

The material is collected inside a painted container equipped with a metal handle which enables the bin to be detached from the machine. Thanks to its 4 swiveling wheels, the bin can be easily moved and emptied. Each wheel is reinforced to guarantee maximum stability during handling.

Technical data

Motor

Type

fan

Voltage

400

V

IP

55

Maximum air flow

2700

m3/h

Noise level

74

dB(A)

Frequency

50/60

Hz

Power

7,5

HP

Insulation class

F

Primary filter

Type

star filter

Class EN 60335-2-69

M Class

Media

polyester

Filter cleaning

automatic pneumatic filter shaker

Machine

Suction inlet

200

Ø mm

Dimensions

1670 x 850

mm

Height

1980

mm

Weight

220

Kg

Max depression available

517
