DF 075 Z2-Z22 II3GDINDUSTRIAL VACUUM

The DF 075 Z2-Z22 is an ATEX Z22 certified industrial vacuum cleaner with a three-phase fan that allows you to vacuum volatile or suspended dust with an articulated arm or extraction hood. Inside the vacuum cleaner there is a large surface filter in antistatic polyester (24,000 cm2), M class certified, with a filtration efficiency of 1 micron, to vacuum electrostatically charged dust in total safety. In addition, it is possible to install an H14 filter for situations that require the suction of the finest dust. To clean the filter there is a very effective manual filter cleaning system as standard. Thanks to a lever outside the filtering chamber, the operator is able to shake the filter and deposit the dust directly in the collection container. On request, it is possible to install an automatic piston filter shaking system or a counter-current filter cleaning system. The unit is equipped with a release container on wheels with a capacity of 65Lt in AISI 304 stainless steel.

Power

0,75 kW

surface

24.000 cm2

Capacity

65/100 Lt

Highlights

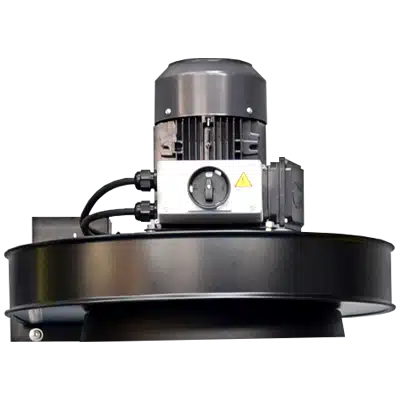

Suction unit

The vacuum is generated by an ATEX certified electric fan designed specifically to guarantee the best air flow while maintaining a good level of depression.

Filtering element

The filtration is guaranteed by an M class polyester filter. The star shape enables air to flow through the filter even when it is dirty. The fabric of the filter is classified as M Class (BIA | EN 60335-2-69). This means that all particles till 1 micron are stopped by the filter so as to protect the blower and the operator around the vacuum cleaner.

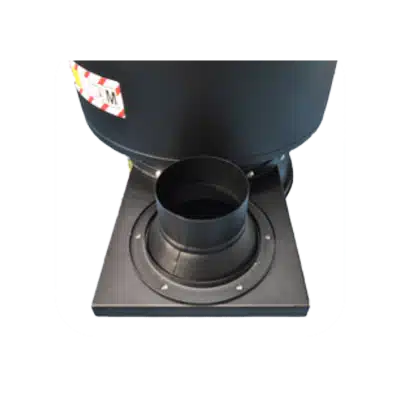

Inlet detector

The inlet deflector is specifically designed to convey the material towards the container. Connection flanges or reduction flanges of different diameters (100 – 200 mm) can be attached to the deflector according to requirements.

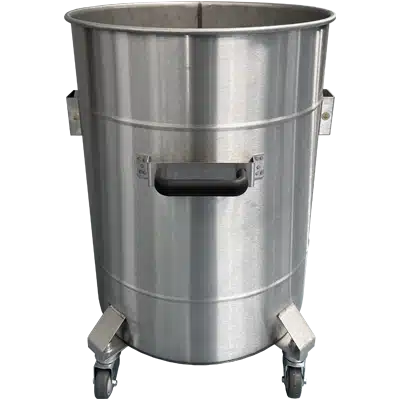

Collection bin

The vacuumed material is collected in an AISI 304 stainless steel container, equipped with a metal handle that enables the bin to be detached from the machine, to avoid any spark that could be generated by the electrostatic charge. Thanks to the 4 sturdy pivoting wheels, the bin can be moved very easily to then dispose of the collected material. Each wheel is reinforced to guarantee maximum stability during handling.

Technical data

Motor

Type

Fan

ATEX marking

II 3 G/D Ex htc IIIB T140°C Gc/Dc

Voltage

400

V

IP

55

Static depression available

180 | 192 | 170

Maximum vacuum

185 | 200 | 180

mBar

Maximum air flow

300 | 600 | 800

m3/h

Noise level

65

dB(A)

Frequency

50/60

Hz

Power

1

HP

Insulation class

F

Primary filter

Type

Star filter

Class EN 60335-2-69

M Class

Media

Antistatic polyester

Filter cleaning

Manual shaker

Machine

Suction inlet

70 | 100 | 120

Ø mm

Dimensions

660 x 800

mm

Height

1630

mm

Weight

80

Kg

Conical cyclone

Incluso
