ECOBULL T PLUS Atex Zone 22

The Ecobull PLUS industrial vacuum is the most powerful in its category, fitted with a 4 kW side channel turbine, ideal for working continuously without the need for maintenance. The filter chamber contains a large surface (24,000 cm2) polyester filter, certified as M Class (1-micron filtration efficiency), ideal for working with even the finest dust. In the industrial vacuum of the Depureco three-phase range, a different filter can be installed depending on the professional application. Teflon water-repellent filters, Nomex 250°C resistant filters, and filters with PTFE treatment for more binding and difficult dust are also available. The unit can be fitted with an H14 absolute filter on demand. The Ecobull industrial vacuum is equipped with a large 65 or 100 Lt detachable container on wheels that allows the operator to empty the vacuumed material easily. Disposable collection bags can also be used. A floating system can be
provided in the container to vacuum liquids in complete safety.

Power

4 kW

surface

24.000 cm2

Capacity

65/100 Lt

Highlights

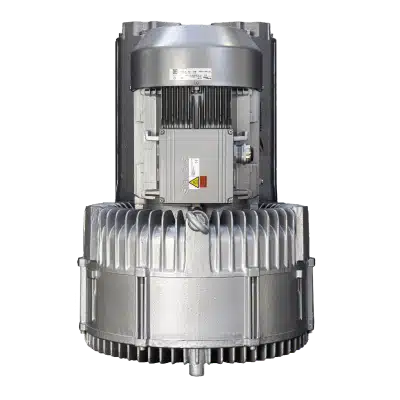

Suction unit

The suction unit is a side channel blower with direct coupling between motor and impeller. The side channel blower is equipped with a safety valve to guarantee continued work in complete safety, without any maintenance. The blower is also equipped with a metal silencer to maintain a low noise level.

Filtering element

The filtration is guaranteed by an M class polyester filter. The star shape enables air to flow through the filter even when it is dirty. The fabric of the filter is classified as M Class (BIA | EN 60335-2-69). This means that all particles till 1 micron are stopped by the filter so as to protect the blower and the operator around the vacuum cleaner.

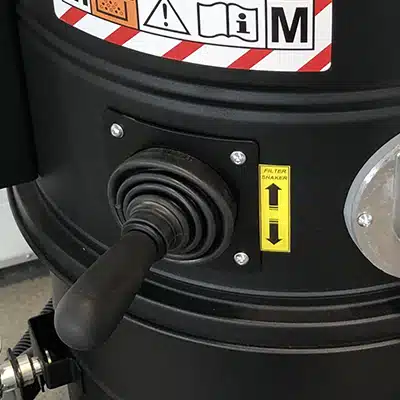

Filtering shaker

On one side of the filter chamber there is an ergonomic manual shaker through which the operator can easily and quickly clean the filter, removing any dust and debris from its surface. Thanks to this smart cleaning system the operator can carry on working without needing to change or wash the filter.

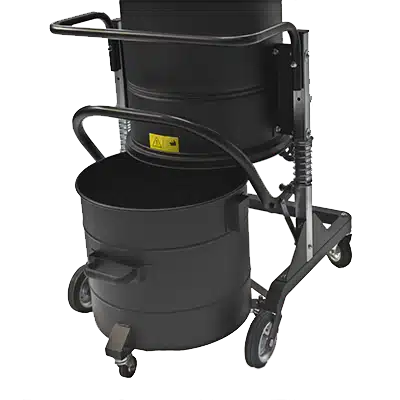

Collection bin

The material is collected inside a painted container equipped with a metal handle which enables the bin to be detached from the machine. Thanks to its 4 swiveling wheels, the bin can be easily moved and emptied. Each wheel is reinforced to guarantee maximum stability during handling.

Technical data

Motor

Type

Side channel blower

Voltage

400

V

IP

55

Continuous vacuum

270

mBar

Maximum air flow

340

m3/h

Safety valve

Included

Noise level

72

dB(A)

Frequency

50/60

Hz

Power

5,5

HP

Primary filter

Type

Star filter

Class EN 60335-2-69

M Class

Media

Polyester

Filter cleaning

Manual shaker

Machine

Suction inlet

70

Ø mm

Dimensions

660 X 800

mm

Height

1530

mm

Weight

95

Kg
