AIR WELDINDUSTRIAL VACUUM

The AIR WELD industrial vacuum is a wall-mounted high-performance suction filter designed to extract welding fumes in complete safety and easily. This vacuum cleaner from the welding fumes range has a 3-meter articulated arm that can reach any point of the work area thanks to its spring and lever system. The AIR WELD industrial vacuum is equipped with a cellulose filter suitable for welding fumes which, because of its large 120,000 cm2 surface, ensures safety and durability. There is also a counter on the machine so that the operator knows when to change the filter.

Power

1,1 kW

surface

120,000 cm2

Capacity

Highlights

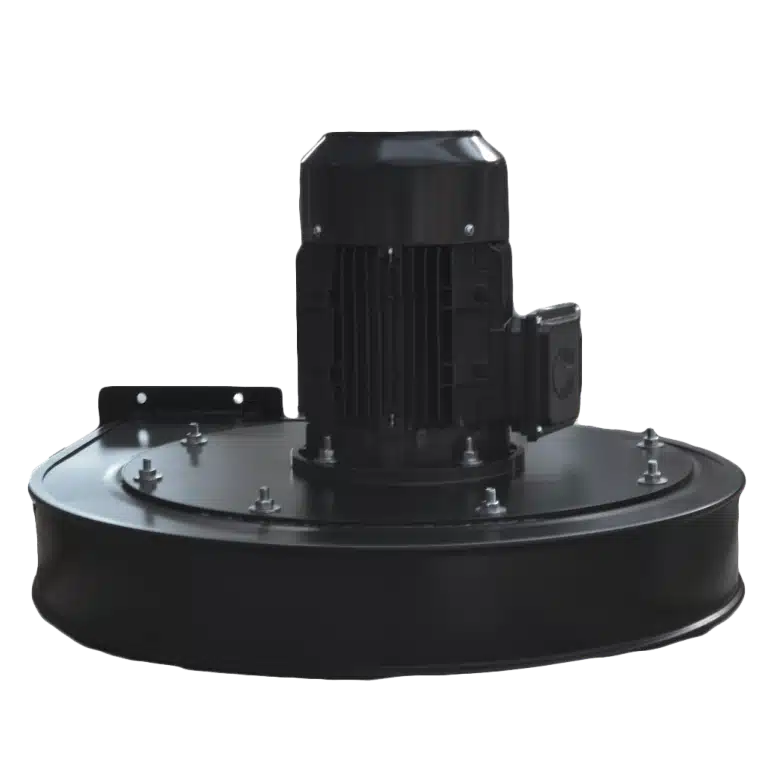

SUCTION UNIT

The vacuum is generated by an electric fan designed specifically to guarantee the best air flow while maintaining a good level of depression.

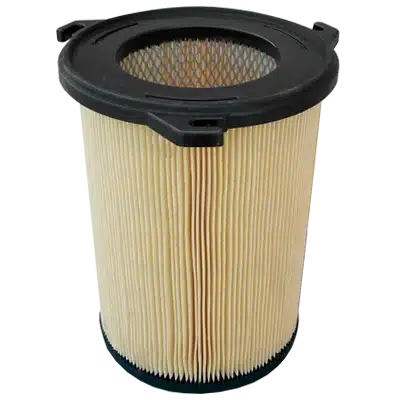

FILTERING ELEMENT

A sturdy cellulose cartridge enables the capturing and the filtration of welding fumes guaranteeing the efficient protection of the operator’s health

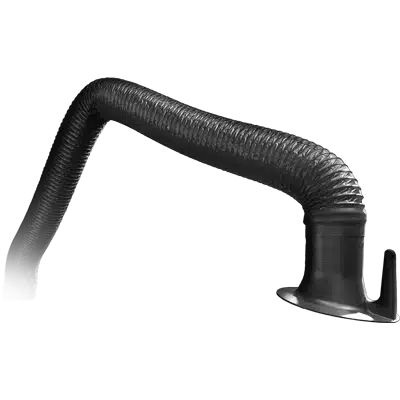

SUCTION ARM

A long flexible suction arm, with ergonomic adjustable hood allows the operator to vacuum from the desired spot in complete safety.

Technical data

Motor

Type

fan

Voltage

400

V

Maximum air flow

1400

m3/h

Noise level

72

dB(A)

Engines

1

Frequency

50/60

Hz

Power

1,5

HP

Primary filter

Type

cartridge

Class EN 60335-2-69

M Class

Media

cellulose

Machine

Dimensions

700 x 750

mm

Height

900

mm

Weight

80

Kg

Max depression available

1250

Suction arm

160 - 3
